Descrição

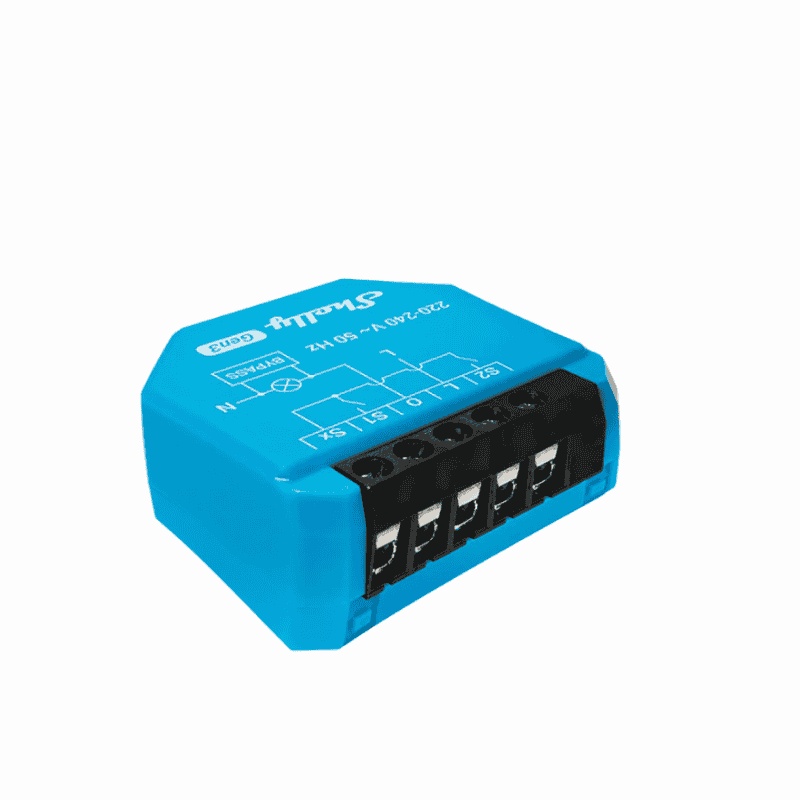

The Shelly 1L Gen3 is a compact smart relay, specifically designed for lighting control, with one major advantage: it does not require a neutral wire to operate. This makes it ideal for retrofitting existing electrical installations without the need for major modifications.
The device allows you to control lights directly from the app, browser or smart home system and can operate both locally (on the Wi-Fi network) and via the cloud.

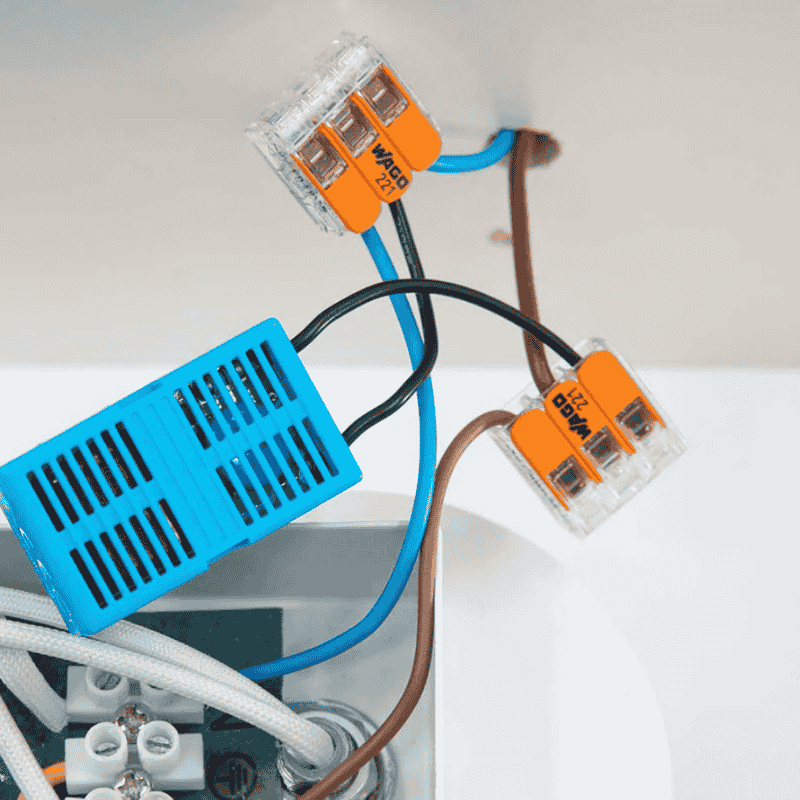

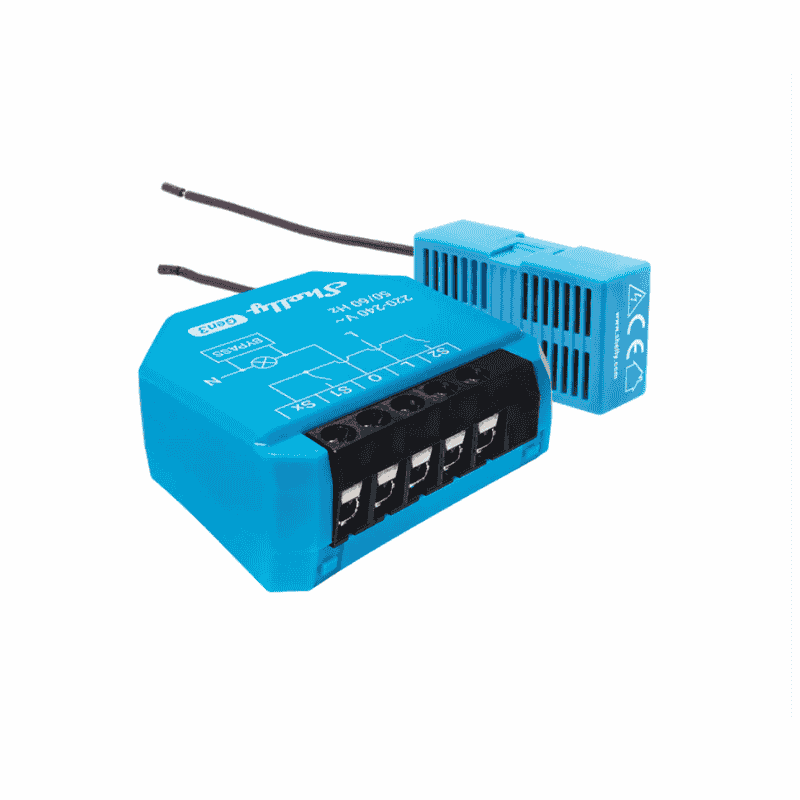

For correct operation with LED bulbs, a Shelly Bypass 1L/2L Gen3 is required, included in the pack, which is installed in parallel with the load.

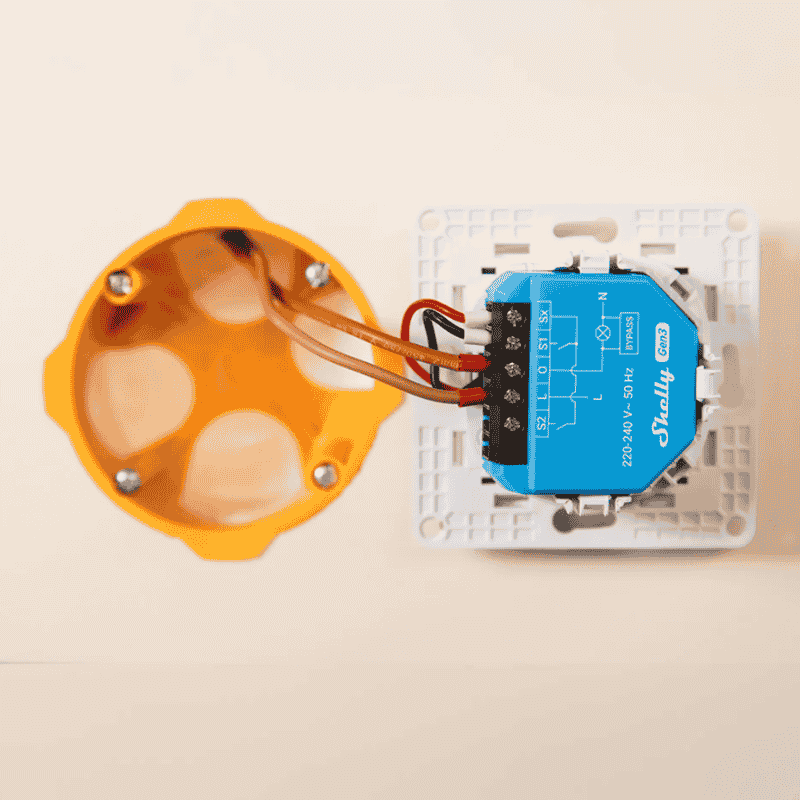

The Shelly 1L Gen3 is designed for flush-mounting behind switches, making it the ideal solution for quickly transforming a traditional system into a smart system.
Key features
-
Wireless lighting control (no neutral required)
-
Matter Ready compatible (via firmware update)
- Control via Wi-Fi + Bluetooth
- Works locally and via the cloud
- Compatible with Android, iOS, Alexa, Google Home, SmartThings
- Includes Shelly Bypass for LEDs
- Support for MQTT, scripting, webhooks
- Integrated web interface
- Smart automations and schedules
Features and benefits
? No neutral wire required – Perfect for older installations where there is no neutral wire in the junction box.
? Full control of lighting – You can switch the lights on or off from anywhere, directly from your phone or via voice commands.
? Ideal for retrofitting - Easy to install behind existing switches, without major modifications.
? Smart automations – Set schedules, scenes and routines for your lighting.
? Extensive compatibility – Works with smart home platforms and systems such as Home Assistant or MQTT.
? Enhanced safety – Includes overheating protection and OTA updates for security and performance.
Applications
- Interior lighting automation
- Retrofitting installations without a neutral wire
- Control of LED and incandescent lights
- Residential homes and flats
- Offices and small commercial premises
| General information |
| Model |
Shelly 1L Gen3 (S3SW-0A1X1EUL) |
| Product type |
Smart relay for lighting without neutral |
| Installation |
In-wall (in the wall) |
| Matter |
Ready (via firmware update) |
| Dimensions |
| Dimensions |
37 x 42 x 16 mm |
| Weight |
24 g |
| Power |
| Supply voltage |
220–240 V AC |
| Power consumption |
<1.2W |
| Neutral required |
No (requires Shelly Bypass for LED) |
| Output |
| Maximum voltage |
240V AC |
| Maximum power |
200W |
| Connectivity |
| Wi-Fi |
802.11 b/g/n |
| Bluetooth |
4.2 |
| Smart features |
| Local control |
Yes |
| Cloud control |
Yes |
| MQTT |
Yes |
| Scripting |
Yes |
| Webhooks |
Yes |
| Scheduling |
20 |
| Compatibility |
| Platforms |
Android, iOS, Amazon Alexa, Google Home, Samsung SmartThings |
| Sensors and protection |
| Temperature sensor |
Yes |
| Overheating protection |
Yes |
| Operating conditions |
| Temperature |
-20°C to +40°C |
