Descrição
The Shelly 1PM Mini Gen3 is a compact smart relay with an energy consumption monitoring function, ideal for the automation and control of electrical appliances in spaces where installation is limited. Thanks to its small size, it is perfect for installation in standard electrical boxes, behind sockets or switches.
The device allows remote control of electrical appliances and provides real-time data on energy consumption, helping to reduce costs and optimise energy efficiency.
Compared to previous generations, the Shelly 1PM Mini Gen3 features an improved processor and expanded memory, delivering better performance and advanced support for automation.
Key features
- Smart mini relay with energy consumption monitoring

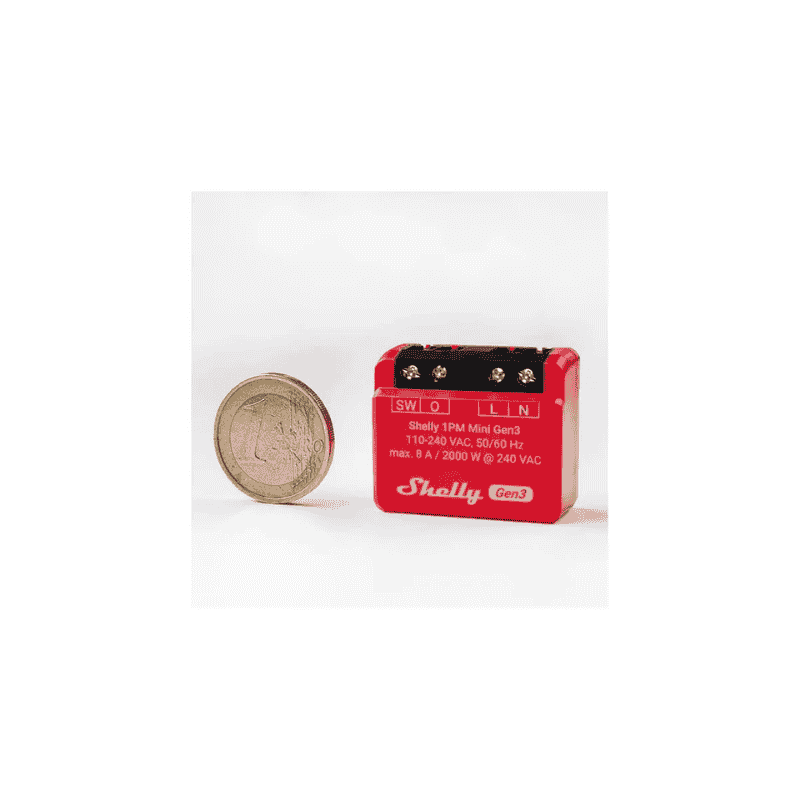

- Ultra-compact design for installation in confined spaces
- Remote control via app or browser
- Integrated Wi-Fi + Bluetooth
- Compatible with Android, iOS, Amazon Alexa, Google Home and Samsung SmartThings
- BLE gateway for Shelly BLU devices
- Wi-Fi extender for other IoT devices
- Support for MQTT, scripting, webhooks and KNX
- Integrated electrical protection
- Integrated web interface
Features and benefits
? Mini format for tight spaces – Its compact dimensions make it ideal for installation in electrical boxes where other relays do not fit easily.
? Smart control of equipment
You can control remotely:
- lighting
- fans
- sockets
- small appliances
- other circuits up to 8A
? Real-time consumption monitoring – See exactly how much your connected devices are consuming and quickly identify high-consumption appliances.
? Smart automation
Enables scheduling, scenarios, webhooks and integration with smart home platforms or external systems.
? Equipment protection
Includes protection against:
- overheating
- overvoltage
- overcurrent
- over-power
? Extensive connectivity – Works via Wi-Fi and Bluetooth, with full integration into the Shelly ecosystem.
Applications
- Lighting automation
- Small appliance control
- Monitoring consumption on individual circuits
- Smart home projects with limited space
- Automation of sockets and loads up to 8A
| General information |
| Model |
Shelly 1PM Mini Gen3 (S3SW-001P8EU) |
| Product type |
Smart mini relay with consumption monitoring |
| Installation |

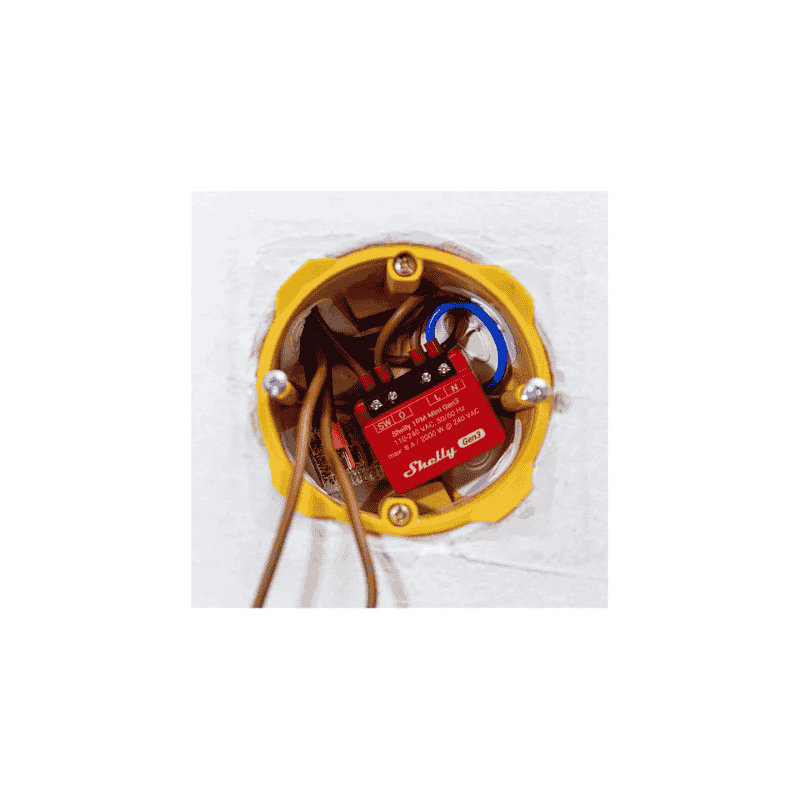

In a junction box / wall box |
| Dimensions and construction |
| Dimensions |
29 x 34 x 16 mm |
| Weight |
18 g |
| Housing material |
Plastic |
| Case colour |
Red |
| Power supply |
| Power supply voltage |
110–240 V AC |
| Power consumption |
< 1.2 W |
| Relay output |
| Relay type |
NO contact, 1-pole |
| Maximum switching voltage |
240 V AC |
| Maximum current |
8A |
| Maximum power |
2000 W |
| Energy measurement |
| Consumption monitoring |
Yes |
| Voltage protection |
Yes |
| Current protection |
Yes |
| Maximum power protection |
Yes |
| Connectivity |
| Wi-Fi |
802.11 b/g/n |
| Bluetooth |
4.2 |
| Smart features |
| Local control |
Yes |
| Cloud control |
Yes |
| MQTT |
Yes |
| Scripting |
Yes |
| UDP |
Yes |
| Webhooks |
Yes |
| Appointments |
20 |
| Advanced schedules |
Yes |
| KVS |
Yes |
| KNX net/IP |
Yes |
| Compatibility |
| Platforms |
Android, iOS, Amazon Alexa, Google Home, Samsung SmartThings |
| Sensors and protections |
| Internal temperature sensor |
Yes |
| Overheating protection |
Yes |
| Overvoltage protection |
Yes |
| Overcurrent protection |
Yes |
| Over-power protection |
Yes |
| Operating conditions |
| Operating temperature |
-20°C to +40°C |
| Humidity |
30%–70% RH |
| Hardware |
| CPU |
ESP-Shelly-C38F |
| Flash memory |
8 MB |
