Descrição

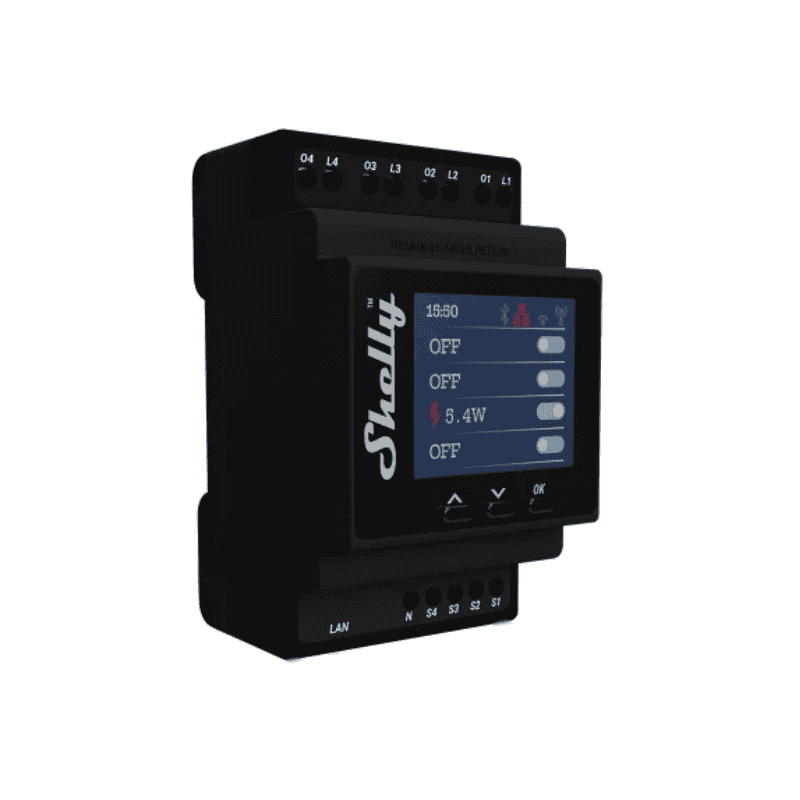

The Shelly Pro 4PM V2 is a professional smart relay for DIN-rail mounting, featuring 4 independent channels and an advanced energy consumption measurement function for each channel. Designed for residential and industrial applications, this device offers complete control over electrical equipment, combined with real-time monitoring.
Thanks to its multiple connectivity options (Wi-Fi, LAN and Bluetooth), integrated colour LCD display and compatibility with smart home systems, the Shelly Pro 4PM V2 is the ideal solution for integrators, installers and BMS systems.
Key features
- 4 independent channels (4 separate circuits)
- Energy consumption monitoring on each channel
- Integrated colour LCD display
- Connectivity: Wi-Fi + LAN + Bluetooth
- DIN rail mounting
- Local and remote control
- Compatible with Android, iOS, Alexa, Google, SmartThings
Features and benefits
? Full control over 4 circuits
Control independently:
- lighting
- sockets
- industrial equipment
- HVAC systems
? Real-time consumption monitoring
- integrated voltmeter + ammeter
- identify high-consumption devices
- optimise energy costs
? Professional LCD display
- Live status for each channel
- network, cloud, Wi-Fi, LAN
- Intuitive menus directly on the device
? Advanced automation
- scenarios and schedules
- MQTT / API / BMS integration
- smart consumption control
? Complete safety
- surge protection
- overcurrent protection
- overheating protection
- over-consumption protection
Applications

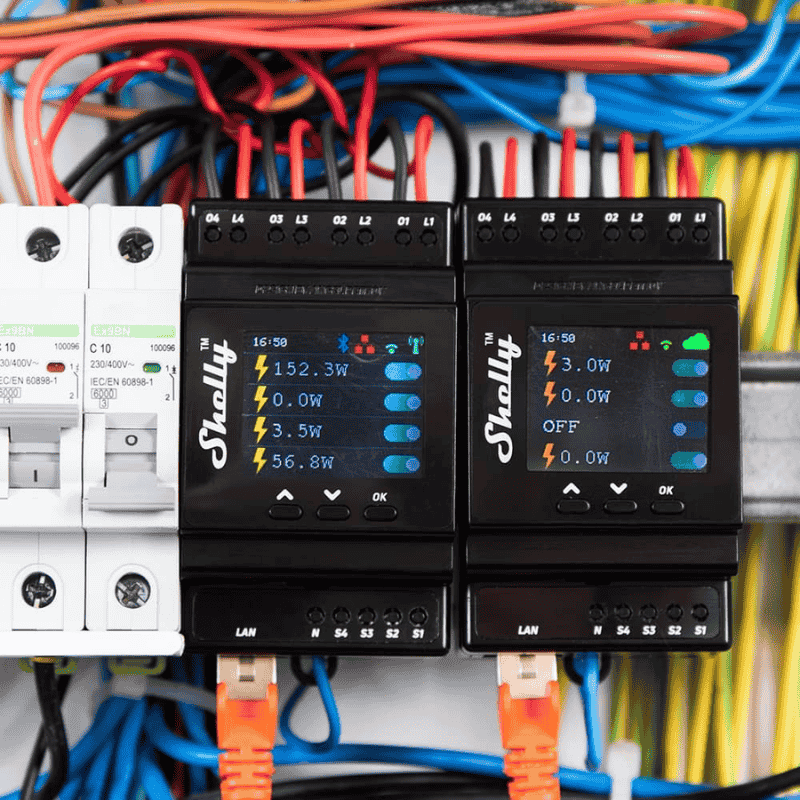

- Smart switchboards
- Photovoltaic systems
- Commercial buildings
- Industrial automation
| General information |
| Model |
Shelly Pro 4PM V2 |
| Type |
4-channel smart relay with monitoring |
| Mounting |
DIN rail |
| Channels |
4 |
| Connectivity |
| Wi-Fi |
802.11 b/g/n |
| LAN |
RJ45 |
| Bluetooth |
4.2 |
| Compatibility |
| Platforms |
Android, iOS, Amazon Alexa, Google Home, Samsung SmartThings |
| Power |
| Voltage |
110–240 V AC |
| Power consumption |
< 4 W |
| Outputs |
| Number of outputs |
4 relays (O1, O2, O3, O4) |
| Maximum current |
16 A/channel (40 A total) |
| Maximum voltage |
240 V AC |
| Measurement functions |
| Voltage |
Yes |
| Current |
Yes |
| Power consumption |
Yes |
| Protections |
| Protection |
Overheating, overvoltage, overcurrent, overconsumption |
| Operating conditions |
| Temperature |
-20°C to +40°C |
| Humidity |
30% ~ 70% RH |
| Dimensions |
| Dimensions |
96 x 53 x 59 mm |
