Em stock
Contacte-nos através de contact@solartech.eu para mais informações sobre o inventário deste produto.
A SolarTech, importador e distribuidor oficial na Roménia da marca KSTAR, tem o prazer de apresentar o inversor híbrido BluE-S 5000D-M1. A KSTAR, líder global em tecnologia de alimentação ininterrupta e soluções de armazenamento de energia, é reconhecida pela qualidade e inovação dos seus produtos e é um parceiro de confiança na transição energética sustentável.
A KSTAR, líder reconhecida na indústria de sistemas de alimentação ininterrupta e de armazenamento de energia, apresenta o inversor híbrido BluE-S 5000D-M1. Fundada em 1993, a KSTAR é bem conhecida pelas suas inovações tecnológicas na gestão de energia, oferecendo produtos de alta qualidade e soluções eficientes para uma ampla gama de aplicações. Com um forte compromisso com a investigação e desenvolvimento, a KSTAR visa melhorar continuamente a eficiência e o desempenho dos seus produtos, tornando-a um parceiro de confiança no mercado global.
Principais especificações técnicas do inversor BluE-S 5000D-M1:
Potência de saída nominal: 5000 W, ideal para utilização em sistemas residenciais e pequenos sistemas comerciais.
Tensão CA nominal: 230 V, compatível com a maioria das instalações domésticas.
Tensão CC máxima: 580 V, oferecendo flexibilidade na escolha dos painéis solares.
Gama de tensão MPPT: 80 V – 560 V, maximizando a eficiência de captação de energia solar.
Eficiência máxima: 97,6 %, garantindo a conversão ideal de energia em eletricidade.
Temperatura de funcionamento: -25 °C a +60 °C, robusto e fiável para operar numa variedade de condições climáticas.
Grau de proteção IP65, excelente para utilização no exterior.
Funcionalidade híbrida e compatibilidade da bateria: O inversor híbrido KSTAR BluE-S 5000D-M1 é otimizado para funcionar com baterias de baixa tensão; a utilização de baterias KSTAR dedicadas é recomendada para um desempenho máximo. Não só converte a energia solar, como também a armazena para uma utilização ideal durante a noite ou durante períodos sem geração solar.
Aplicações e benefícios:
Utilização versátil: Adequado para sistemas residenciais, comerciais e fora da rede.
Monitorização avançada: Com RS485, CAN2.0, WiFi e 4G para fácil controlo remoto.
Sustentabilidade: Reduz a dependência da rede elétrica e otimiza os custos de energia.
Através da sua parceria com a KSTAR, a Solartech garante o acesso a algumas das tecnologias mais avançadas no setor das energias renováveis, oferecendo soluções eficientes e fiáveis para uma ampla gama de necessidades energéticas. Ao escolher o inversor BluE-S 5000D-M1, beneficia da experiência e do excecional suporte técnico oferecidos pela Solartech, reforçando a transição para um futuro energético sustentável.
10 - 20 dias
Contacte-nos através de contact@solartech.eu para mais informações sobre o inventário deste produto.
The Kstar 50 kW Inverter + 197 kWh Storage Kit is a comprehensive and efficient solution for large-scale photovoltaic installations, combining the performance of a powerful 50 kW inverter with a 197 kWh energy storage system. With IP65 protection, this kit is perfect for outdoor installation and guarantees reliable operation, even in extreme environmental conditions. It is ideal for use in commercial and industrial applications, and for prosumers looking to optimise the storage and use of solar energy.
Technical specifications:
KAC500DP inverter (50 kW):
Maximum PV input voltage: 1000 V
MPPT range: 350 V – 800 V
Maximum MPPT current: 36 A
Number of MPPT tracks: 3
Maximum battery input voltage: 750 V
Nominal input voltage: 500 V – 750 V
Maximum input current: 55 A x 2
DC input power: 55 kW
Nominal AC output power: 50 kW
Maximum AC output power: 55 kVA
Maximum AC current: 80 A
Rated AC voltage: 400 V
Efficiency: 97.5%
Reverse connection protection, DC protection, overvoltage protection
IP protection: IP65
Battery storage – BC197DE:
Battery type: LFP (LiFePO4)
Battery capacity: 197 kWh
Number of modules: 11
Battery module capacity: 17.92 kWh
Nominal voltage: 704 V
Operating voltage range: 616 V – 792 V
Discharge capacity: Max. 0.5 C
IP rating: IP54
Operating temperature: -30°C – +50°C
Installation: Outdoor
Advantages:
High storage capacity: The kit includes a 197 kWh storage system, ideal for meeting the energy requirements of commercial and industrial applications, ensuring efficient energy management.
Efficient performance: The 50 kW inverter with 97.5% efficiency guarantees optimal use of solar energy, reducing losses and maximising yield.
Complete protection: IP65 protection makes this system fully dust and water-resistant, making it perfect for outdoor installation in all weather conditions. Additional protection against overvoltage and incorrect connections ensures safe and reliable operation.
Quick and easy installation: Thanks to its easy-to-install design, this kit can be put into operation quickly, saving time and installation costs.
Durability and reliability: The kit is designed to withstand extreme weather conditions, with an operating temperature range of -30°C to +50°C, ensuring consistent performance even in challenging environments.
The Kstar 50 kW Inverter + 197 kWh Storage Kit is the ideal solution for large-scale photovoltaic projects requiring both energy generation and efficient storage. With a robust design, IP65 protection and top-tier performance, this system ensures optimal use of solar energy and low long-term energy costs, making it perfect for commercial and industrial applications.
10 - 20 dias
Contacte-nos através de contact@solartech.eu para mais informações sobre o inventário deste produto.

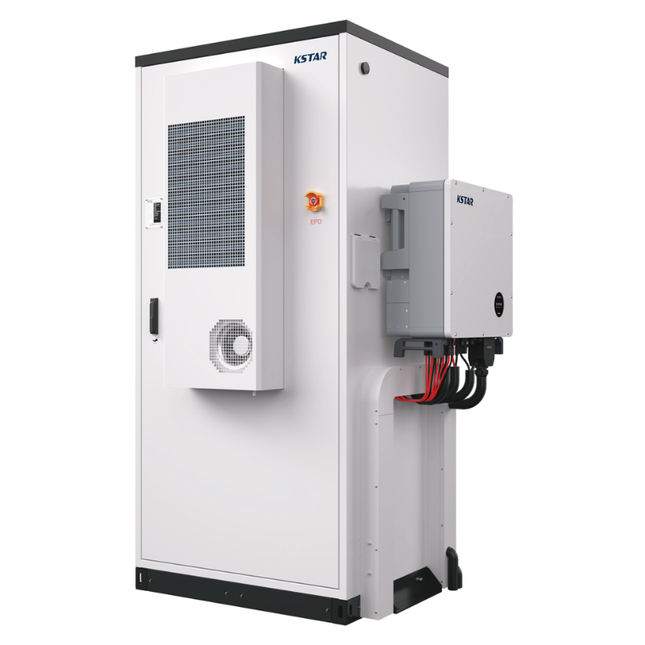

This comprehensive kit from Kstar is the ideal solution for large-scale photovoltaic installations, offering excellent performance in terms of both energy generation and storage. With a 50 kW inverter and a 102.4 kWh energy storage system, this kit is perfect for supporting prosumers and businesses looking to maximise the efficiency of their photovoltaic system. Designed for outdoor use with a high protection rating (IP65), this product guarantees long-term durability and reliability.
Technical specifications:
KAC500DP inverter (50 kW):
Maximum PV input voltage: 1000 V
MPPT range: 350 V – 800 V
Maximum MPPT current: 36 A
Number of MPPT tracks: 3
Maximum battery input voltage: 750 V
Nominal input voltage: 500 V – 750 V
Maximum input current: 55 A x 2
DC input power: 55 kW
Nominal AC output power: 50 kW
Maximum AC output power: 55 kVA
Maximum AC current: 80 A
Rated AC voltage: 400 V
Efficiency: 97.5%
Battery storage – BC100DE:
Battery type: LFP (LiFePO4)
Battery capacity: 102.4 kWh
Number of modules: 10
Battery module capacity: 5.12 kWh
Nominal voltage: 480 V
Operating voltage range: 480 V – 560 V
Discharge capacity: Max. 0.5 C
IP rating: IP54
Operating temperature: -30°C – +50°C
Installation: Outdoor
Advantages:
Top performance: The kit combines a powerful 50 kW inverter with a 102.4 kWh storage system, offering a complete solution to meet high energy demands, whether for industrial or commercial users.
High efficiency: The inverter has an efficiency of 97.5%, ensuring optimal use of the energy produced and stored, reducing losses and maximising system performance.
Safety and reliability: Integrated protections, including overvoltage protection and short-circuit protection, ensure safe operation in all conditions. Furthermore, the kit is equipped with IP65 protection, meaning it is fully dust-proof and water-resistant, making it ideal for outdoor use.
Quick and easy installation: Thanks to its smart design, installing this system is quick and simple, reducing installation costs and the time required for commissioning.
Durability in extreme conditions: With an operating temperature range of -30°C to +50°C, this kit is built to withstand extreme weather conditions, ensuring consistent performance even in challenging environments.
The 50 kW Inverter + 102.4 kWh Storage, IP65 kit from Kstar is an excellent choice for those seeking a powerful, reliable and efficient photovoltaic system, suitable for both commercial and industrial use. With a robust design, IP65 protection and excellent performance, this product ensures optimal use of solar energy and its storage in a safe and efficient manner.
10 - 20 dias
Contacte-nos através de contact@solartech.eu para mais informações sobre o inventário deste produto.
The 125kW Inverter + 233kWh Storage Kit from Kstar is a state-of-the-art solution for the efficient storage and use of solar energy, ideal for large-scale photovoltaic projects. With an AC output power of 125 kW and a storage capacity of 233 kWh, this kit is perfect for meeting the requirements of the most demanding commercial and industrial applications. IP65 protection makes this system suitable for outdoor installation, ensuring optimal performance even in harsh weather conditions.
Technical data:
KAC120D inverter (125 kW):
Maximum PV input voltage: 1000 V
Minimum input voltage: 580 V
Nominal operating voltage: 580 V – 1000 V
Maximum input current: 322 A
Maximum DC input power: 134 kW
Number of DC inputs: 1
Nominal AC output power: 120 kW
Maximum AC output power: 132 kVA
Maximum AC current: 191 A
Rated AC voltage: 400 V (±15% of 10%)
Efficiency: 98.5%
Reverse connection protection, DC protection, overvoltage protection
IP protection: IP65
Battery storage – BC233DE:
Battery type: LFP (LiFePO4)
Battery capacity: 233 kWh
Number of modules: 13
Battery module capacity: 17.92 kWh
Nominal voltage: 832 V
Operating voltage range: 728 V – 936 V
Discharge capacity: Max. 0.5 C
IP rating: IP54
Operating temperature: -30°C – +50°C
Installation: Outdoor
Advantages:
High storage capacity: The kit includes a 233 kWh storage system, sufficient to meet the energy requirements of large-scale installations, ensuring efficient long-term energy use.
Excellent efficiency: The 98.5% efficient inverter ensures rapid and efficient conversion of solar energy into usable electricity, minimising losses and maximising yield.
Complete protection: IP65 protection makes this kit extremely resistant to adverse weather conditions, making it ideal for outdoor installation, whilst surge protection and protection against incorrect connections provide additional safety.
Quick installation: The system’s simplified design allows for quick and efficient installation, significantly reducing commissioning time and costs.
Long-term durability: The kit operates within a temperature range of -30°C to +50°C, making it extremely durable and suitable for use in a variety of environmental conditions.
The 125 kW Inverter + 233 kWh Storage Kit from Kstar is the perfect solution for maximising the use of solar energy in large-scale projects. With a large storage capacity, IP65 protection and excellent efficiency, this system ensures consistent and reliable long-term performance, making it the ideal choice for commercial and industrial applications.
10 - 20 dias
Contacte-nos através de contact@solartech.eu para mais informações sobre o inventário deste produto.

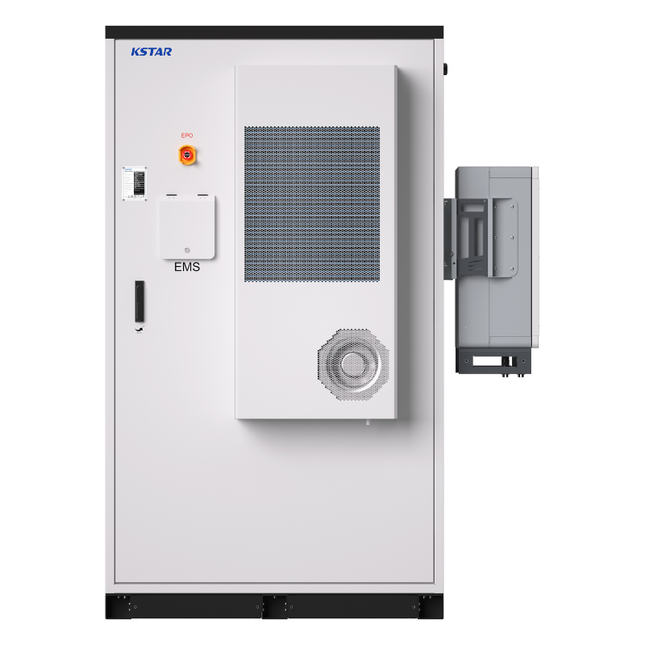

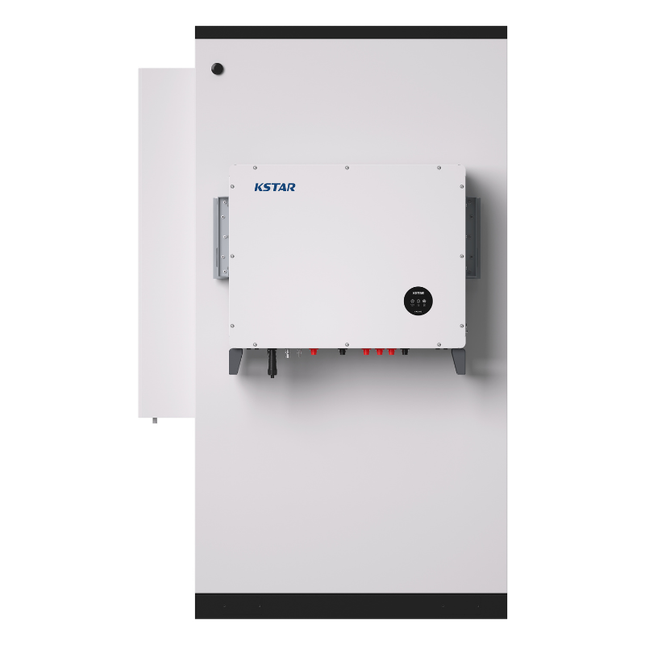

The 125 kW Inverter + 215 kWh Storage Kit from Kstar is an advanced and reliable solution for large-scale photovoltaic installations, offering exceptional performance and efficiency. Designed to meet the demands of the most demanding projects, this photovoltaic energy storage system combines a powerful 125 kW inverter with a storage capacity of 215 kWh, making it ideal for use in commercial and industrial environments. With IP65 protection, this kit can be safely installed outdoors, ensuring optimal long-term operation, even in extreme weather conditions.
Technical specifications:
KAC120D inverter (125 kW):
Maximum PV input voltage: 1000 V
Minimum input voltage: 580 V
Nominal operating voltage: 580 V – 1000 V
Maximum input current: 322 A
Maximum DC input power: 134 kW
Number of DC inputs: 1
Nominal AC output power: 120 kW
Maximum AC output power: 132 kVA
Maximum AC current: 191 A
Rated AC voltage: 400 V (±15% of 10%)
Efficiency: 98.5%
Reverse connection protection, DC protection, overvoltage protection
IP protection: IP65
Battery storage – BC235DE:
Battery type: LFP (LiFePO4)
Battery capacity: 215 kWh
Number of modules: 12
Battery module capacity: 17.92 kWh
Nominal voltage: 768 V
Operating voltage range: 672 V – 864 V
Discharge capacity: Max. 0.5 C
IP rating: IP54
Operating temperature: -30°C – +50°C
Installation: Outdoor
Advantages:
High performance: This kit offers a total power output of 125 kW for photovoltaic energy generation and 215 kWh for energy storage, making it ideal for large commercial and industrial applications where energy requirements are significant.
Maximum efficiency: The inverter has an efficiency of up to 98.5%, ensuring fast and efficient conversion of solar energy into usable electricity, reducing energy losses.
Complete protection: With IP65 protection, the system is fully dust and water resistant, making it perfect for outdoor installation, regardless of weather conditions. Furthermore, additional protection against overvoltage and incorrect connections ensures safe and reliable operation.
Easy installation: Thanks to its intuitive design, installing the system is quick and simple, thereby reducing the costs and time required for commissioning.
Durability in extreme conditions: The kit can operate within a temperature range of -30°C to +50°C, making it ideal for areas with extreme climates, ensuring consistent and reliable performance.
The 125 kW Inverter + 215 kWh Storage Kit from Kstar is the ideal solution for efficient energy management in a large-scale photovoltaic installation. With excellent performance, IP65 protection and high storage capacity, this system is perfect for maximising the use of solar energy and reducing operational costs, making it an excellent choice for commercial and industrial projects.
10 - 20 dias
Contacte-nos através de contact@solartech.eu para mais informações sobre o inventário deste produto.

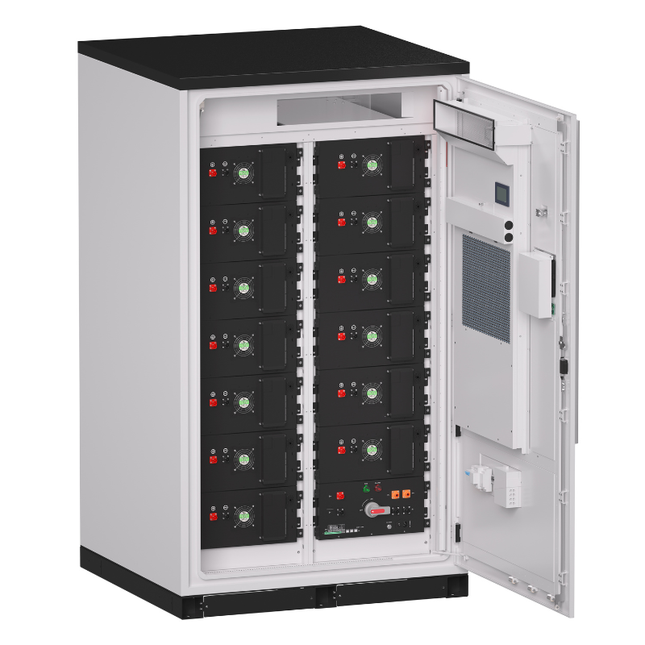

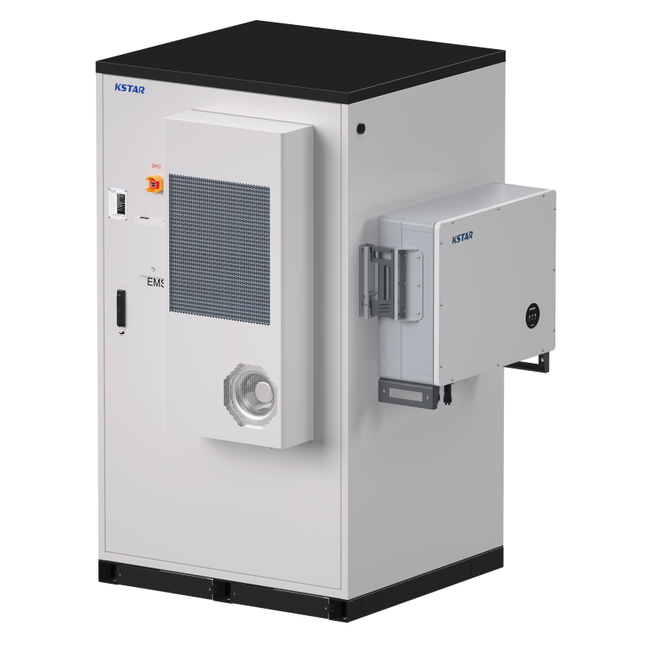

The Kstar 100kW inverter with a 197kWh storage system is an advanced solution for industrial and commercial applications, ensuring efficient energy management and reducing dependence on the electricity grid. Featuring LiFePO4 technology and a robust outdoor enclosure, this system offers safety, reliability and optimal performance.
Technical specifications:
Total battery capacity: 197 kWh
Number of modules: 11
Nominal voltage: 704V
Operating voltage range: 616V – 792V
Charge/discharge current: 0.5C
DoD: 90%
IP rating: IP54
Cabinet dimensions: 1300 x 1200 x 2380 mm
Weight: <2.5t
Operating temperature: -30°C to 50°C
Cooling method: Air conditioning
Advantages:
LiFePO4 technology for extended service life and increased safety.
Quick installation and easy configuration.
90% DoD rate for optimal use of storage capacity.
Advanced protection against overvoltage, overcurrent and extreme temperatures.
Compact and robust design for use in harsh environments.
Kit contents:
Kstar BC197DE battery cabinet
100kW inverter
LiFePO4 battery modules
Integrated battery management system (BMS)
Protection and cooling systems
